xTool F2 Ultra UV + Conveyor

$4,649.00

Description

xTool F2 Ultra UV + Conveyor Bundle

  • Auto Streamline Conveyor: This expands the working area to 220mm x 550mm to enable continuous, high-volume batch production of engravings and cuts, automatically moving materials without manual repositioning.



Magic Inside Glass, Moments Shine Forever

UV laser is the optimal choice for detailed glass work. It enables permanent 3D inner engraving while keeping the surface entirely untouched. From glass blocks to crystal balls and beyond, every shape transforms into a stunning, one-of-a-kind creation with enhanced artistic and collectible value.

Superior Precision, Streamlined Production

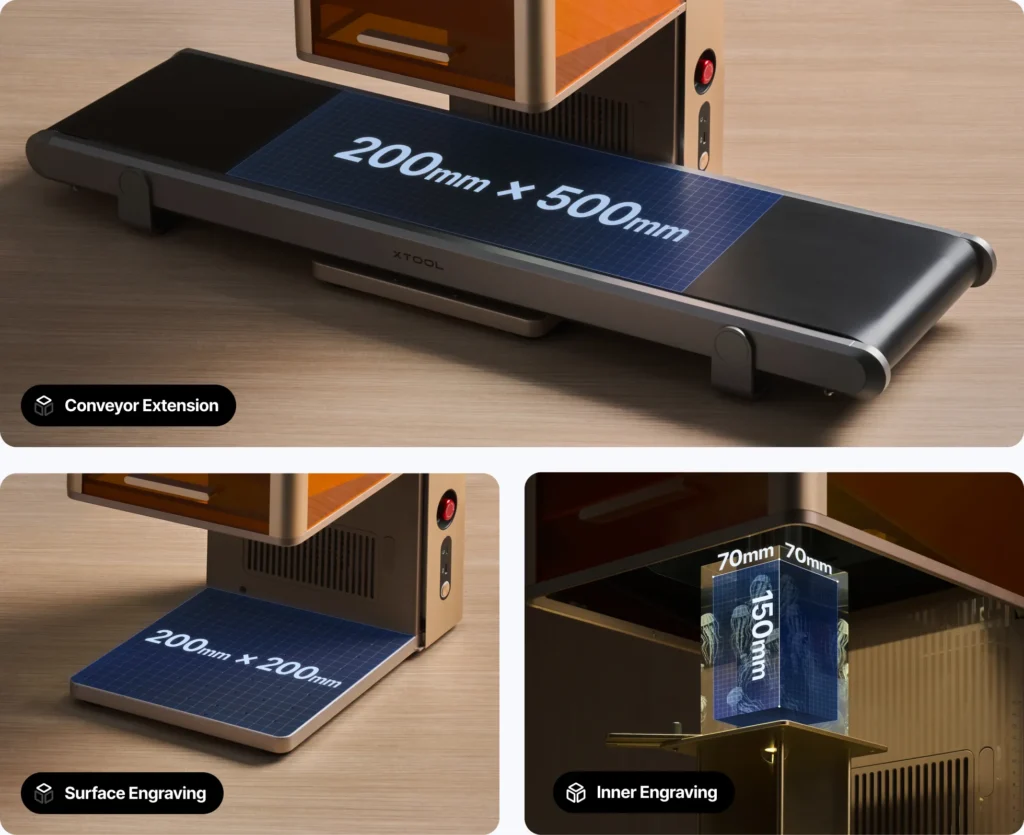

Bigger Workspace, Greater Potential

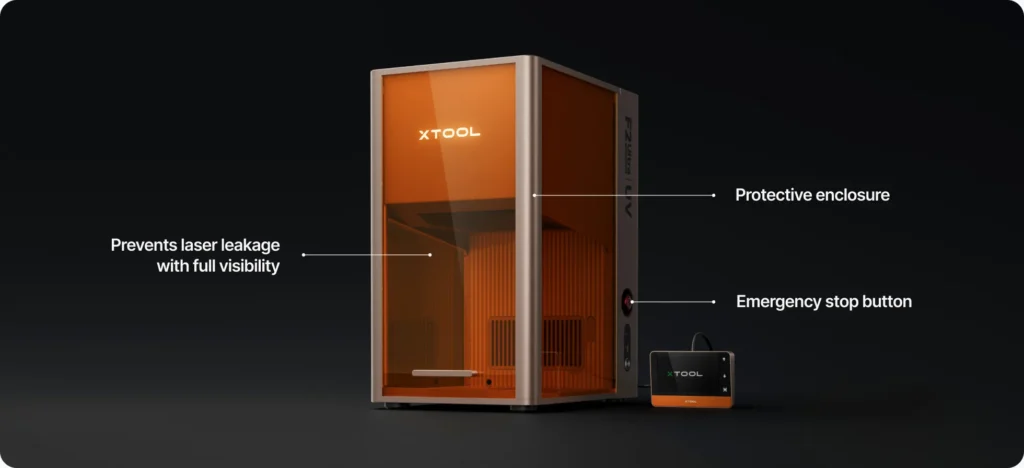

Safe by Design, Maintenance Made Easy

Smart Humidity Protection

Enhanced laser sealing and drying for improved humidity protection and longer lifespan.

Stay Cool, Stay Quiet

Airflow design optimized with fluid dynamics for efficient cooling and reduced noise.

Dual 48MP Cameras: See It, Get It

The industry’s first dual-camera UV laser system. Two cameras handle automatic positioning and focusing, achieving 0.2 mm accuracy—60% more precise than single-camera systems.

Every process is consistently effortless, ensuring every detail is exactly as you imagined.

Machine Specifications

Specification

Details

Processing Capacity
Laser Type 5W 355 nm UV Laser
Processing Mode Laser Engraving
Laser Cutting
Supported Materials Laser Engravable: Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more

Laser Cuttable: Glass, Plastics (PE, PP, EVA, PET, etc.), Fabric, Leather, Acrylic (Not Fully Transparent), Paper, Wood, and More
Working Area Inner Engraving: 2.8″ × 2.8″ (70 mm × 70 mm)
Surface Engraving: 7.9″ × 7.9″ (200 mm × 200 mm)
Surface Engraving with Conveyor: 7.9″ × 19.7″ (200 mm × 500 mm)
Max. Working Speed 590.55 ips (15,000 mm/s)
Max. Laser Cutting Capacity (Basswood) 0.59″ (15 mm) in Multiple Passes
Max. Laser Cutting Capacity (Acrylic) 0.47” (12 mm) in Multiple Passes
Max. Processing Height 5.9” (150 mm)
Max. Rotary Engraving Diameter 5.9” (150 mm)

Smart Software
Supported Software xTool Studio
Operating System Windows/macOS
Connection Method USB/Wi-Fi/IP
Supported Files 2D: SVG, DXF, JPG, JPEG, GIF, PNG, BMP, and WEBP
3D: STL, OBJ, AMF, 3MF, GLB, PLY
AImake Compatibility Yes

Easy Operation
Pre-assembled Yes
Built-in Camera 48 MP Dual Cameras
Positioning Method Camera Positioning
Focus Mode Autofocus
Ranging System LiDAR Ranging System
Preview Method Smart Camera Preview
High-speed Light Live Preview

Accuracy & Precision
Laser Spot Size 0.02 × 0.02 mm
Positioning Accuracy 0.0079″ (0.2 mm), Camera
Ranging Accuracy 0.0079″ (0.2 mm), Camera
Image Resolution 48 MP
Motion Resolution 0.00005” (0.00133 mm) (Inner Engraving)
Vector Fitting Resolution 0.00004” (0.001 mm)

General
Safety Certification Class 4 Laser Safety
Machine Dimensions 11.6” × 16.9” × 20.5” (294 mm × 429 mm × 520 mm)
Machine Weight 49.6 lb (22.5 kg)
Max. Machine Input Power 348W
Power Adapter Input Voltage 110 V – 240 V, AC 50/60 Hz
Storage Temperature Range -10 to 60°C (14 to 140°F)
Operating Temperature Range 10 to 30°C (50 to 86°F)
Storage Humidity 10 – 60% Rh

Frequently Asked Questions

Why is F2 Ultra UV the Best Choice for Glass Customization?

F2 Ultra UV delivers an all-in-one, commercial-grade solution for high-speed, premium glass customization.

  • Premium results that boost product value: Smooth, uniform, crack-free finishes — even on thin glass — help you create high-end products with higher margins.
  • High-efficiency production for scalable business: No pre-treatment or cleaning needed. Engraving speeds up to 15,000 mm/s, with batch and rotary support for more SKUs.
  • More profit and flexibility than outsourcing: Bring production in-house for faster sampling, quicker turnaround, and greater control over trends and costs.
  • Complete glass processing in one machine: Supports 3D inner engraving, fine surface engraving, embossing, and precision cutting.



Why Glass Customization Is Your Next High-Margin Opportunity?

  • Higher pricing power and premium appeal: Compared to common materials like wood or acrylic, glass products instantly feel more upscale — and customers are willing to pay more for that premium finish.
  • Rapidly growing demand across high-value markets: From weddings and events to corporate gifting, souvenirs, and luxury drinkware, glass personalization is expanding into more profitable applications.
  • Less competition, stronger differentiation: While many businesses stay focused on traditional engraving materials, upgrading into glass helps you stand out with a premium product line.
  • A long-term, scalable profit driver: Glass is more than a new material — it’s a business upgrade toward higher-margin customers and sustainable growth.
